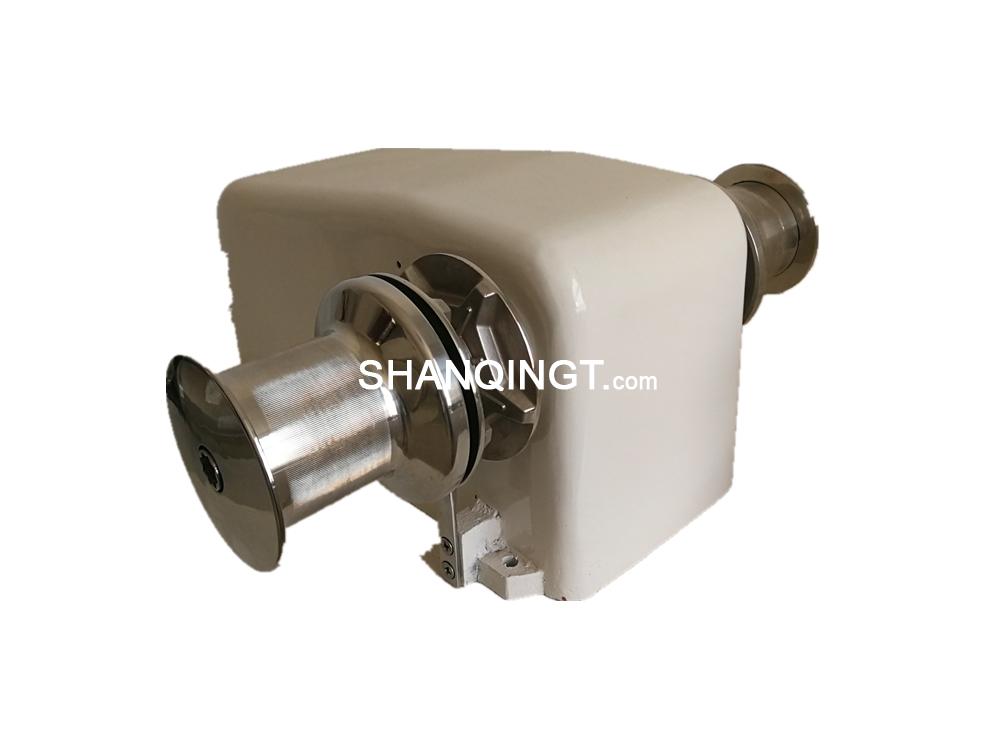

General Description:
1. Twin capstan, single gypsy, twin gypsy available.
2. Reversible motor.
3. Independent operation of capstans and gypsy by declutching the drive.
4. Simple deck mounted installtion with no under deck parts.
5. Simplified maintenance with ability to strip the running gear from the windlass without disturbing the windlass mounting.
6. Totally sealed gearbox with ground worm drive.
7. Horizontal windlass casing are cast marine grade aluminium alloy with white epoxy enamel finish.
8. Fit include hand-switch, control box and wrence.
Tech Parameter:
|
Model
|
Weight |
Power
|
Motor |
No load |
Max |
Max. |
Line |
Rope |
Chain |
|
net(kg) |
(W) |
absorption |
Load |
Pull |
Speed |
Size |
Size |
||
|
YDH-011 |
16 |
12V/24V |
600 |
50A |
190kg |
600kg |
30m/min |
12-14mm |
6-7mm |
|
YDH-012 |
25.2 |
12V/24V |
1000 |
90A |
350kg |
750kg |
25m/min |
14-16mm |
8-10mm |
|
YDH-013 |
32 |
12V/24V |
1400 |
125A |
520kg |
1100kg |
25m/min |
18-20mm |
8-10mm |
|
YDH-014 |
33.7 |
12V/24V |
1600 |
140A |
660kg |
1400kg |
20m/min |
20-24mm |
10-12mm |
|
YDH-015 |
36 |
220V/380V |
2000 |
6A |
900kg |
2000kg |
20m/min |
20-24mm |
10-13mm |
|
YDH-016 |
38 |
220V/380V |
3000 |
9A |
1200kg |
2500kg |
20m/min |
20-24mm |
10-13mm |
