General description:

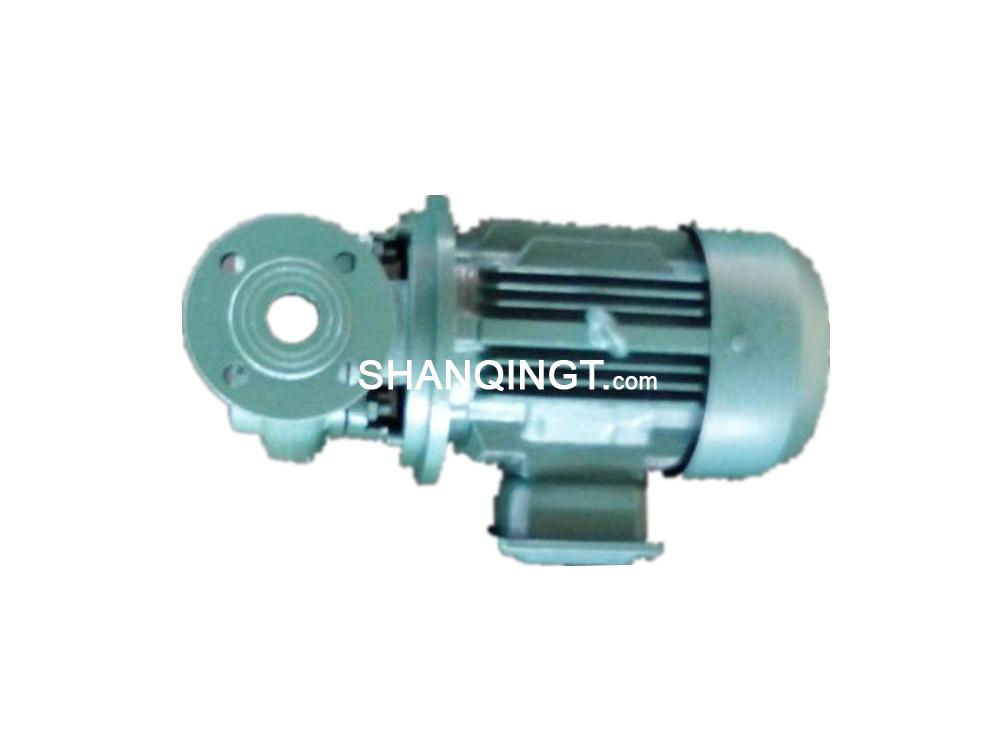

CGW sewage pump is a motor driven uprightness single-channel impeller centrifugal drainage pump(sump pump). The pumps of this series are suitable for transferring sewage,industrial waste water oily water of sea water at a temperature below 85c,containing solids with a diameter up to one third of that of the pump port, and fibers with a length up to five times of that of the ports. They are the best choice for use in conjunction with waste water treatment plants.
Tech Parameter:
|
Model
|
flow rate |
pressure |
Power |
Inlet diameter |
outlet diameter |
|
Q(m3/h) |
(Mpa) |
(kw) |
(mm) |
(mm) |
|
|
20CGW-3-6 |
3 |
0.06 |
0.37 |
20 |
20 |
|
25CGW-2-4 |
2 |
0.04 |
0.25 |
25 |
25 |
|
25CGW-5-10 |
5 |
0.1 |
0.55 |
25 |
25 |
|
25CGW-10-15 |
10 |
0.15 |
1.1 |
25 |
25 |
|
32CGW-8-15 |
8 |
0.15 |
1.1 |
32 |
32 |
|
32CGW-10-25 |
10 |
0.25 |
1.5 |
32 |
32 |
|
40CGW-10-15 |
10 |
0.15 |
1.1 |
40 |
40 |
|
40CGW-15-25 |
15 |
0.25 |
2.2 |
40 |
40 |
